Invoke for Child Workflow Block
•About the Invoke for Child Workflow Block
About the Invoke for Child Workflow Block
The Invoke for Child workflow block invokes a workflow created for a child business object. The exit ports allow for paths contingent upon the workflow being started, completed, and failing.

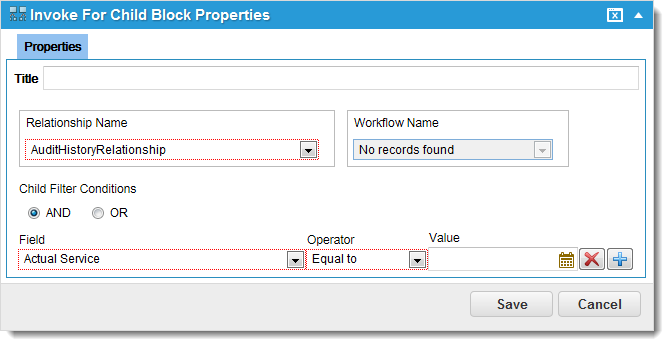

Invoke for Child Workflow Block Properties
Exit Ports
| Exit Port | Description |
|---|---|
| ok |
Continue to the next block. |
Properties
| Property | Description |
|---|---|
| Title | A unique name for the workflow block. |
| Relationship Name | A valid relationship defined for the child object in a relationship. Choose from the drop-down list. |
| Workflow Name | An existing workflow to invoke. Choose from the drop-down list. |
| Child Filter Conditions | |
| AND / OR | A child filter condition. |
| Field | An operand. Choose from the drop-down list. |
| Operator | An additional operator to apply. Choose from the drop-down list. |
| Value |
A value. Select from the drop-down list. |
Actions
| Button | Action |
|---|---|
|
Adds an expression to the workflow block. |
|
Removes an expression from the list. |
| Save | Commits your settings. |
| Cancel | Exits without saving. |
